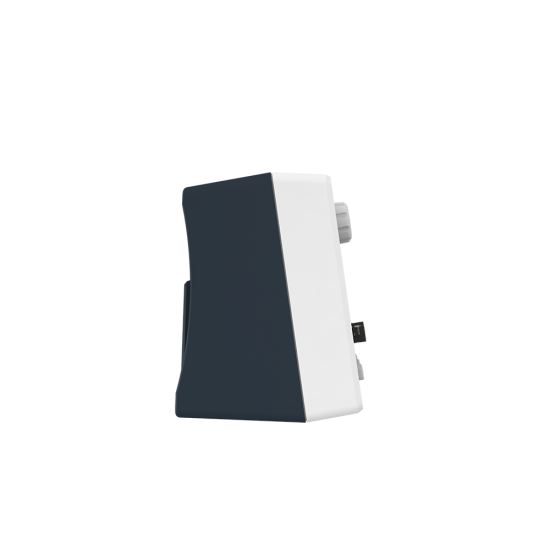

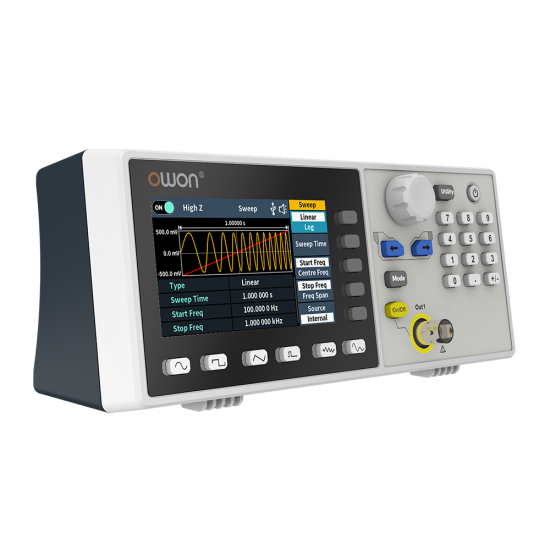

Owon DGE1060 60 MHz Waveform Jeneratör

Owon DGE1060 60 MHz Waveform Jeneratör

Weight: 7.00kg
SKU: DGE1060
MPN: DGE1060

Bu ürünü (3) kişi görüntüledi

0 yorum yapılmış. - Yorum Yap

7.962,13 TL

Vergiler Hariç: 0,00 TL

Sepete Ekle

Hemen Al

Alışveriş Listeme Ekle Karşılaştırma listesine ekle

Owon DGE1060 60 MHz Waveform Jeneratör

30MHz/60MHz frekans çıkışı
Maksimum 300MSa/s Örnekleme hızı, Dikey çözünürlük 1μHz
14 bit Dikey Çözünürlük, 8K Arb dalga formu uzunluğu
Kapsamlı dalga formu çıkışı: 5 temel dalga formu ve 150 yerleşik rastgele dalga formu
Kapsamlı modülasyon fonksiyonları: AM, FM, PM, FSK, Süpürme ve Patlama
SCPI desteklenir
3,6 inç (480 × 260 piksel) LCD

DGE1060 Genel Özellikleri:

60MHz Frekans Output
Tek Kanal
300 MSa/s Örnekleme Oranı
14 Bits
Standart Dalga Formları: sine, square, pulse, ramp, and noise

Model	DGE1030	DGE1060
Channel	1
Frequency Output	35MHz	60MHz
Sample Rate	125MSa/s	300MSa/s
Vertical Resolution	14 bits
Waveform
Standard Waveform	sine, square, pulse, ramp, and noise
Arbitrary Waveform	exponential rise, exponential fall, sin(x)/x, step wave, and others, total 150 built-in waveforms, and user-defined arbitrary waveform
Frequency
Sine	1μHz - 30MHz	1μHz - 60MHz
Square	1μHz - 15MHz	1μHz - 20MHz
Pulse	1μHz - 15MHz	1μHz - 20MHz
Ramp	1μHz - 1MHz	1μHz - 2MHz
Noise	20MHz (-3dB，typical)
Arbitrary Waveform	1μHz -10MHz
Frequency Resolution	1 μHz or 7 significant figures
Frequency Stability	±30 ppm at 0±40℃
Frequency Aging Rate	±30 ppm per year
Arbitrary
Waveform Length	2 - 8K points
Sample Rate	125Ma/s	300Ma/s
Amplitude
into 50Ω Load	1mVpp - 20Vpp（≤10MHz） 1mVpp - 4Vpp （≤60MHz）
DC Offset Range (AD+DC)	±(10 Vpk – Amplitude Vpp/2) high resistance ±(5 Vpk – Amplitude Vpp/2) 50 Ω
DC offset Resolution	1mV or 4digits
Load Impedance	50Ω (typical)
DC offset Accuracy	±(1 % of \|setting\| + 1 mV + amplitude Vpp x 0.5%)
Modulation
Type	AM, FM, PM, FSK, sweep, Burst
Internal Modulation Frequency	2 mHz to 100 kHz
Sweep
Carrier	Sine, rectangular wave, ramp wave, arbitrary wave(Except DC)
Minimum/Maximum Starting Frequency	2mHz（minimum）/ maximum frequency of corresponding carrier
Minimum/Maximum Termination Frequency	2mHz（minimum）/ maximum frequency of corresponding carrier
Trigger Source	internal, manual
Burst
Waveform	Sine wave, square wave, ramp wave, pulse wave and arbitrary wave (Except DC)
Types	N-Cycle
Trigger source	Internal, manual
Carrier frequency	1μHz ≤ Offset ≤ Maximum frequency of corresponding carrier /2
Input / Output
Display	3.6-inch TFT LCD with resolution 480 x 272
Communication Interface	USB Device
Mechanical specifications
Dimension (W×H×D)	200mm x 68.5mm x 74.5mm
Weight (without package)	0.5kg
